Kitchen Canopies

Canopies / Cooker hoods

Canopies can be any size, shape, accommodate as many filter ( mesh or free flow ) as required/ wanted. Extraction systems are designed to meet all council requirements etc. All our systems are manufactured from grade 304 stainless steel ( catering grade ). They are fully Tig welded to be leak proof, easy to clean, stylish to look at. The system you need may be subject to the specifications of your architect & health dept. We are fully experienced in all those aspects, and are able to meet any specifications.

Example of work done / in progress

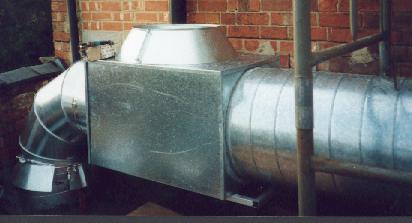

Part of a Carbon filter System.

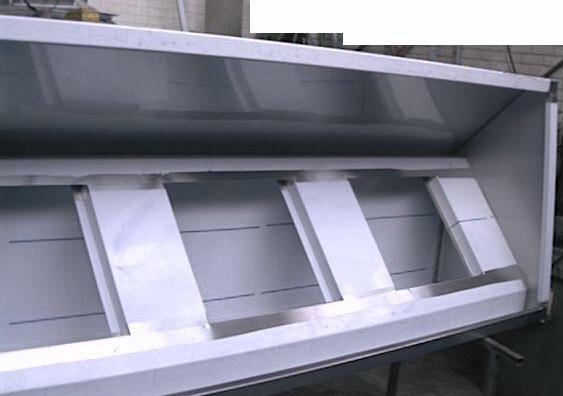

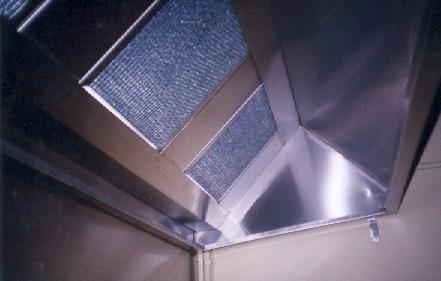

8 ft welded canopy with 3 mesh filters

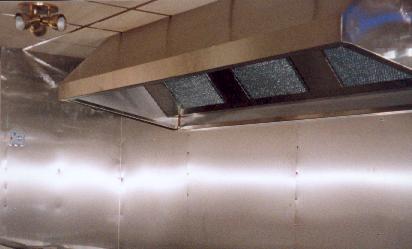

20 swg stainless steel wall cladding

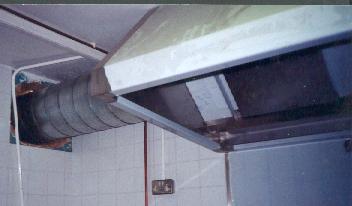

Above: Left is a typical ducting installation with cased axial fans. Right: Right is a powerfull centrifugal fan used in a carbon filter system

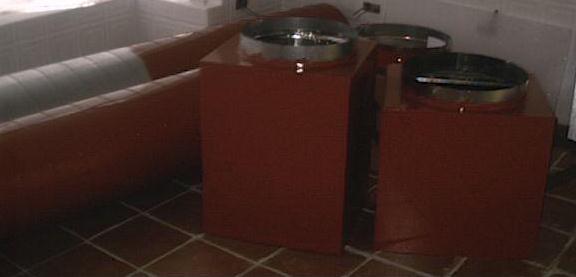

Above are prepainted system componets ready for assembly. They match the brick wall colour which enables it to stand out. What you can see is a silencer, fan housing and ducting

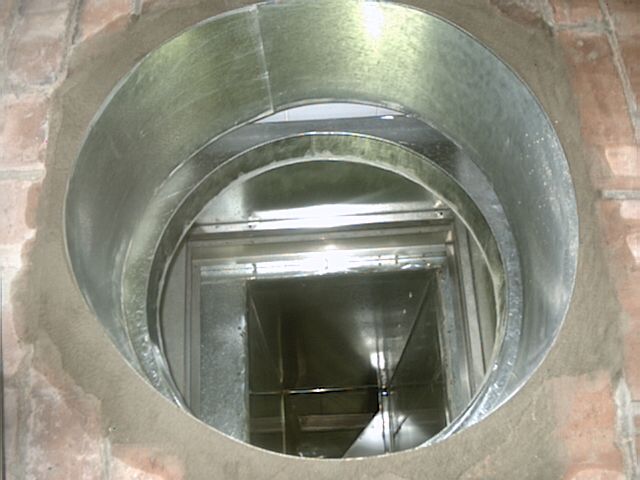

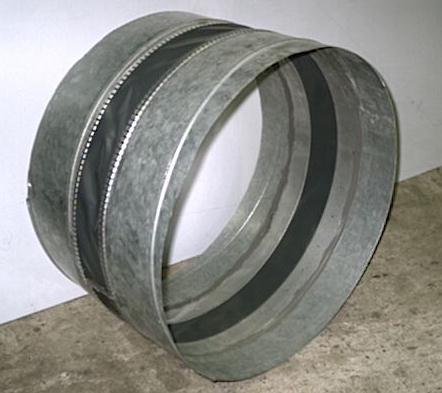

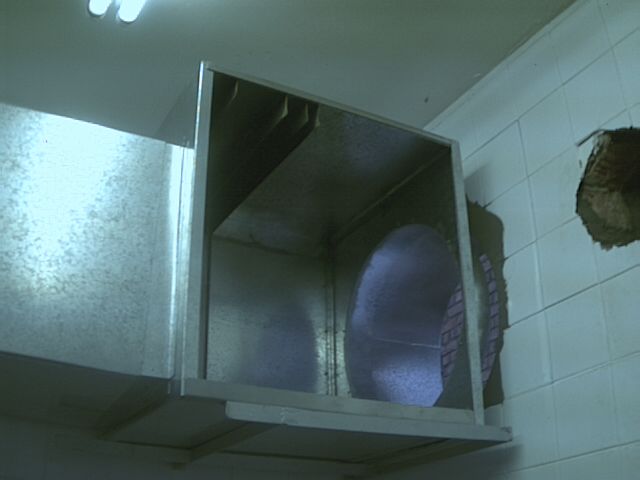

Above: is a view of a carbon filter housing box, which is about to exit through the wall. ( see bottom picture ). Left is a anti vibration coupling which will connect below the fan. This will eliminate any vibrations that may travel through the building. It is a flexible connection. Below is the ouside view of the above picture as it exits.
